Modern electronics design demands flexible, high-performance tools—and that’s exactly what the 5 Series B MSO Mixed Signal Oscilloscope delivers. Whether you’re debugging embedded systems, validating protocols, or analyzing complex power electronics, this next-generation oscilloscope offers the precision and scalability engineers need.
In this guide, we explore the standout features and real-world advantages of the 5 series mso, and why it continues to be a preferred choice for advanced test and measurement tasks.
What Is the Tektronix 5 Series MSO?

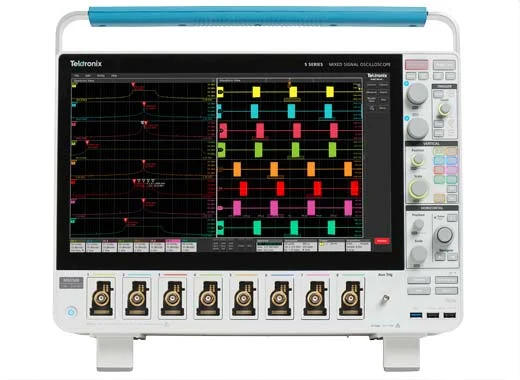

The 5 Series B MSO (Mixed Signal Oscilloscope) is Tektronix’s latest mid-to-high-performance oscilloscope platform, designed for today’s embedded and mixed-signal challenges. Built on the solid foundation of the original 5 Series, the B model introduces hardware and software improvements for faster processing, smoother UI interaction, and broader remote access capabilities.
With support for both analog and digital channels, advanced serial decoding, and a highly customizable architecture, it strikes the perfect balance between performance and usability.
1. 15.6″ HD Capacitive Touchscreen
The scope’s user interface is centered around a full HD 15.6″ capacitive touchscreen—offering smartphone-like interaction with pinch, zoom, swipe, and drag features. It’s intuitive, fast, and ideal for waveform exploration.
2. FlexChannel™ Inputs
Each input on the 5 Series B MSO can function as one analog or eight digital channels, thanks to Tektronix’s patented FlexChannel™ technology. With up to 8 FlexChannels available, you can mix analog and digital inputs to suit your exact test setup.
3. Bandwidth and Sample Rate Options
The oscilloscope supports bandwidths from 350 MHz to 2 GHz, with sample rates up to 6.25 GS/s. Combined with deep acquisition memory, this allows users to capture fine waveform details and long sequences without compromise.
4. Protocol Analysis
Decode and analyze over 20 serial protocols including I2C, SPI, UART, CAN, LIN, USB, and Ethernet. These tools are integrated into the scope, enabling fast debugging and trigger setup without the need for external software.
5. Built-in Tools and Upgradability
The scope supports optional tools like a digital voltmeter, frequency counter, and arbitrary/function generator. Its architecture is software-upgradeable, allowing bandwidth increases and application module additions after purchase.
6. Enhanced Processing Power
The B model features a more powerful processor for faster waveform rendering and more responsive UI—ideal for complex debug sessions or remote operation scenarios.
Benefits for Engineers and Test Labs
The 5 series mso offers multiple real-world advantages:
- Improved Workflow: The large display and modern UI make daily operation smoother and faster.
- Greater Signal Insight: FlexChannels allow for precise correlation of analog and digital signals in embedded systems.
- Scalability: Upgrade features as needed without replacing hardware.
- Minimized Bench Clutter: Integrated tools reduce the need for external instruments.
- Reliable Data: High resolution, low noise, and deep memory ensure accurate measurements in complex environments.
Industry Applications and Use Cases
The 5 Series B MSO is ideal for:
- Embedded System Design: Analyze microcontroller behavior and peripheral communication.
- Automotive Electronics: Validate ECUs, sensors, and in-vehicle network protocols.
- Power Electronics: Observe switching behavior and power integrity in converters and inverters.
- Aerospace & Defense: Analyze digital and RF components in mission-critical systems.
- IoT & Wireless: Test multi-domain systems with low-power and high-speed components.
Its combination of flexibility and precision makes it a powerful tool across development, validation, and manufacturing environments.
How It Compares to Other Tektronix Scopes
Compared to the 3 Series MSO, the 5 Series B MSO offers higher bandwidth, larger screen size, and more FlexChannel inputs. It also bridges the gap to the 6 Series B MSO, offering a compelling mix of affordability and advanced capability for mid- to high-end use cases.
Conclusion
Whether you’re upgrading your test bench or setting up a new lab, the 5 series mso offers the performance, flexibility, and usability that modern engineers need. With advanced analysis tools and intuitive control, it’s a smart investment for teams looking to streamline their design, debug, and validation workflows.
For more information on the 5 Series MSO, visit this link to learn how it can enhance your testing and analysis capabilities. Additionally, to explore a wide range of other precision instruments, visit eFocus Instrument today!
